Chelsio 10G long reach SFP + Optic Module


Price:
Sale price$25.00

Description

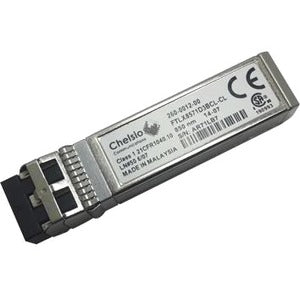

Chelsio's SM10G-SR 10Gb/s 850nm Multimode SFP+ optical transceivers are designed and certified for use with Chelsio's 10-Gigabit Ethernet Unified Wire Adapters.

The Chelsio SM10G-SR Transceiver is compatible with Chelsio's T5-based Unified Wire Adapters. The T5 adapters support PCI Express 3.0 host bus interface, and are optimized for storage, cloud computing, HPC, virtualization and other data center applications. The fifth-generation T5 ASIC technology from Chelsio provides the highest performance while dramatically lowering host-system CPU and memory overhead with on-board hardware that offloads TCP/IP, iSCSI, FCoE and iWARP RDMA processing. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption.


  • Built-in digital diagnostic functions
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Uncooled 850nm VCSEL laser
  • Maximum link length of 300m on 2000 MHzKm MMF
  • Improved pluggable form factor
  • Supports 9.95 to 10.5 Gb/s bit rates
  • Cost-effective and optimized for high-speed data center interconnects.Hot-pluggable SFP+ footprint
