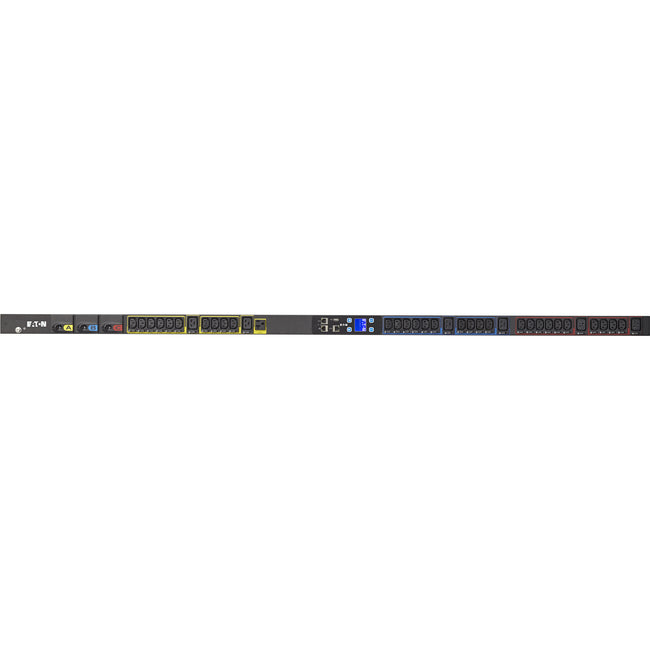

Eaton Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU


Price:
Sale price$1,316.00

Description

Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection

  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
  • Reading available via Ethernet connection over a network
  • Clearly labeled circuits simplify load balancing
  • Easy read digital ammeter reduces local monitoring time
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
